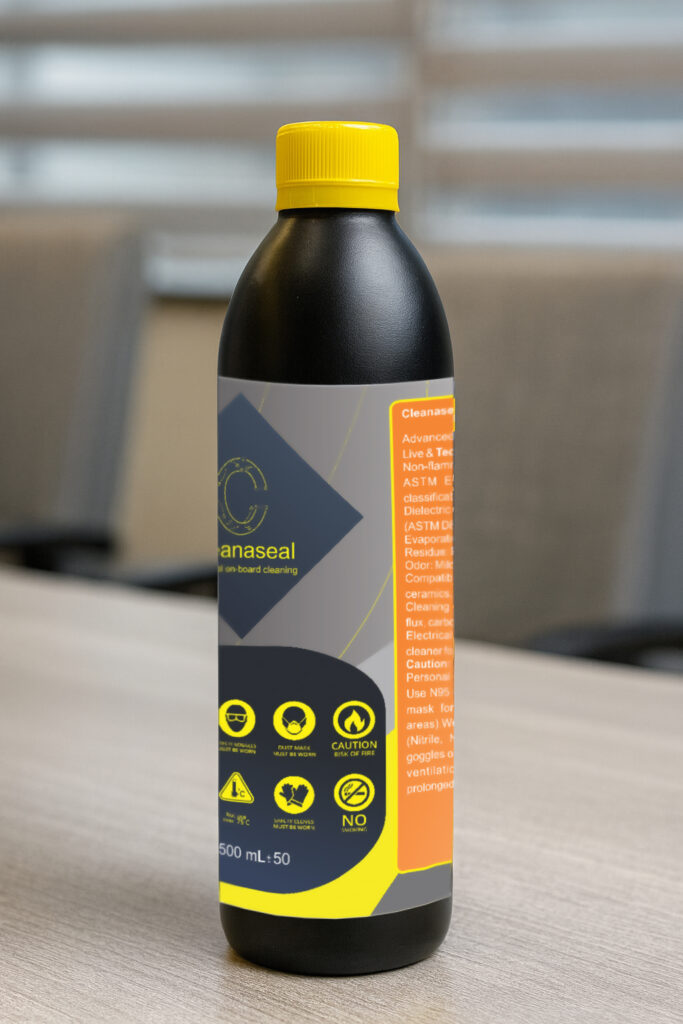

Cleanaseal 95D FastDry Application Description
Cleanaseal® 95D FastDry is engineered for demanding environments where electrical
reliability, rapid drying, and residue-free performance are critical.
Its ultra-dry dielectric formulation and high dielectric strength (≥45 kV)
support safe and effective cleaning across a wide range of industrial, marine,
and energy-sector electrical systems — whether energized or de-energized.
(Technical datasheet CLEANASEAL-95-D-FASTDRY-TDS)
Marine & Offshore Electrical Systems
Cleanaseal 95D FastDry is ideal for environments exposed to moisture, salt spray, corrosion, and vibration. It safely cleans:
- Shipboard electrical cabinets & switchboards
- Marine generators and alternators
- Navigation & communication panels
- Offshore platform power distribution boards
- Winch motors, cranes, and deck machinery
- Corrosion-prone connectors and terminal boxes
Its ultra-low conductivity (<1×10⁻¹¹ S/m) and fast evaporation (10–20 s) prevent tracking and flashover even in high-humidity marine conditions.
Oil & Gas Platforms (Onshore & Offshore)
Designed for harsh industrial environments, Cleanaseal 95D FastDry performs exceptionally well on:
- Explosion-proof electrical cabinets (without leaving residue)
- PLC & control panels exposed to hydrocarbon vapors
- Motor control centers (MCC)
- Relay rooms & switchgear
- Emergency generator sets
- Sensors, junction boxes & instrument panels
The product is non-flammable, maintains stability up to 120°C, and leaves no conductive film — making it suitable for maintenance during shutdowns or controlled energized work.
Petrochemical & Refinery Electrical Systems
Perfect for cleaning equipment contaminated with:
- Oil mist
- Carbon dust
- Grease
- Polymerized residues
- Process contaminants
Typical applications include:
- DCS & PLC cabinets
- Control panel busbars
- Insulators and power terminals
- High-voltage equipment and switchgear
- Rotating electrical machines exposed to chemical atmospheres
Its ultra-dry water content (≤2 ppm) minimizes any risk of dielectric breakdown in refinery environments.
Motors, Alternators & Generators
Cleanaseal 95D FastDry can be used to clean:
- Windings coated with oil or carbon
- Cooling duct residues
- Slip rings & commutator areas
- Junction boxes and terminal boards
Because it evaporates rapidly and leaves no residue, it is safe for use on:
- Large industrial motors
- Marine generators
- Backup generators
- Turbine alternators
Electrical Panels, Switchgear & Control Cabinets
Suitable for both energized and de-energized maintenance (following NFPA 70E / IEC 61482 safety procedures), including:
- High-voltage switchgear
- Low-voltage distribution panels
- Busbars and insulators
- Protective relays
- Contactors, circuit breakers & terminal blocks
- Sensitive PCB assemblies
Its dielectric strength ≥45 kV ensures safe cleaning with minimal risk of re-energization failure.
Mining, Industrial & Harsh Environments
Adapted for sectors requiring a cleaner that withstands dust, vibration, and extreme heat:
- Mining substations
- Conveyor motor systems
- Outdoor cabinets exposed to moisture
- Heavy industrial machinery
- Remote power stations

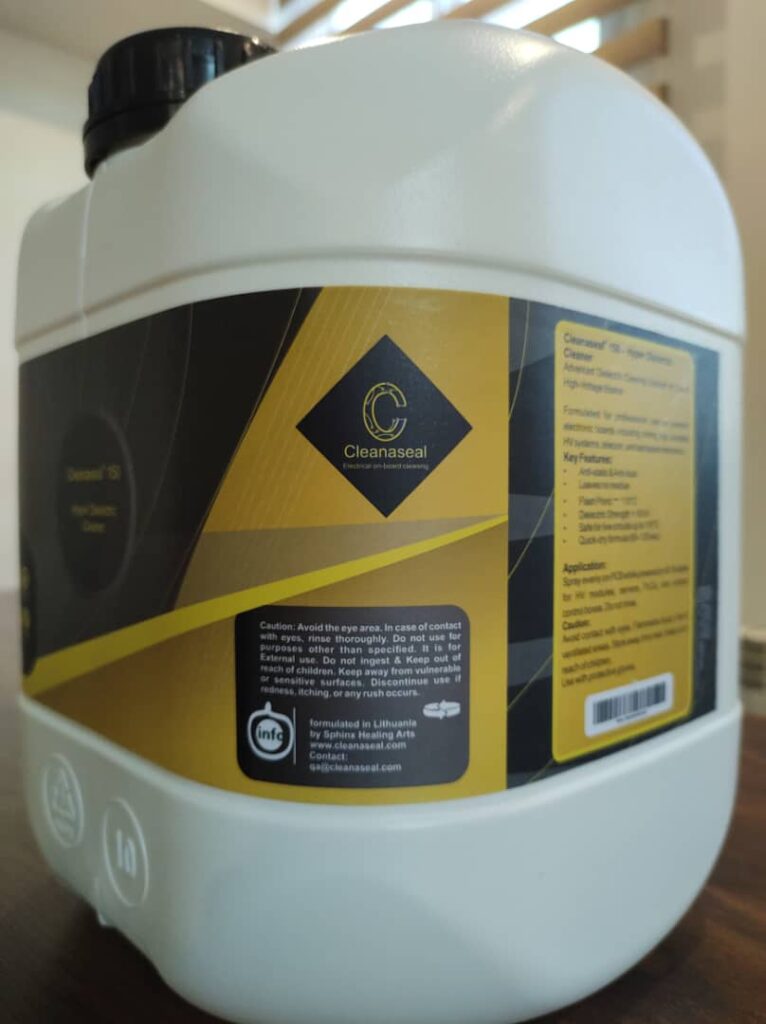

Cleanaseal 150 THV
Cleanaseal 150 THV is a high-end hyper-dielectric cleaner engineered for safe cleaning of live electrical circuits, high-voltage systems (up to 55 kV+), and sensitive electronic boards operating at temperatures up to 120°C.
It delivers controlled evaporation (50–70 s), excellent surface wetting, anti-static protection, and zero conductive residue after drying.
The formula is non-halogenated, non-flammable in typical use (flash point >90°C), and compatible with a wide range of plastics (ABS, PC, PVC, FR-4). It effectively removes oil, flux, grease, carbon, and dust from industrial electrical assemblies.
Typical Applications:
– Power control boards & PLC cabinets
– HV switchgear & mining rigs
– Industrial electronic modules
– Sensitive live circuits requiring residue-free cleaning
Methods: Spray, dip, or ultrasonic; no rinsing required.
Cleanaseal 150 THV is ideal for facilities demanding maximum electrical safety, stable performance, and clean operation in industrial, enclosed, or high-temperature environments.
Cleanaseal 110 HV Lite
Cleanaseal® 110 HV Lite is a high-voltage dielectric cleaner and conditioning fluid designed for energized and de-energized equipment. It removes surface contamination while leaving a thin hydrophobic protective film that reduces tracking, limits corona discharge, and enhances long-term insulation performance.
With a dielectric strength of 40–45 kV, ultra-low conductivity, and controlled evaporation (3–6 minutes), it is ideal for outdoor and indoor electrical systems exposed to moisture, salt, dust, or industrial pollution.
Typical Applications:
– High-voltage insulators (porcelain, glass, composite)
– Bushings, connectors, busbars & switchgear
– Transmission equipment in polluted or coastal environments
– Control panels & enclosures
– Motors, alternators, generators (when de-energized)
– Surfaces needing long-lasting hydrophobic conditioning
Benefits:
– Low-odor formula
– Hydrophobic conditioning layer improves reliability
– Reduces leakage current & corona discharge
– Compatible with HV spray guns
– Stable up to 70°C
– Suitable for most insulating materials
Cleanaseal 110 HV Lite is ideal for high-voltage maintenance in marine, offshore, utility, industrial, and contaminated outdoor environments, where insulation performance and long-term protection are critical.
